Aqualine Ashlar - 3-1⁄8" Smooth Top Permeable Pavers - Belgard
|
REQUIRED SQ.FT. AMOUNT
|
- PRODUCT DESCRIPTION
MODULAR • MULTI-USE • ECO-FRIENDLY • CLASSIC • PERMEABLE • TIMELESS • SMOOTH • INTERLOCKING • LINEAR
ECO-FRIENDLY • CLASSIC • TIMELESS
Beauty, functionality and quality are hallmarks of the Belgard® Aqualine™ Permeable Pavers. The innovative design features of the permeable paver systems are hallmarks of the Aqualine Ashlar 3-Piece permeable paver. The innovative design features of this permeable paver system make a perfect pavement choice for machine or hand-installed driveways, plazas, parking lots and alleyways.
Designed to provide an aesthetically pleasing permeable interlocking concrete paver surface that is pedestrian friendly and functional for vehicular traffic, the Aqualine Series by Belgard® combines interlocking spacer bars, a smooth surface with a micro-chamfer, and joint openings designed to optimize infiltration and maintenance. All Aqualine PICP units are part of either a 3-inch or 4-inch dimensional increments to allow for true installed dimensions.
Aqualine Permeable Pavers work equally well for pedestrian and vehicular applications. Featuring a smooth surface and a wide variety of color options for the ultimate in design flexibility. Aqualine permeable pavers can eliminate stormwater runoff and improve water quality plus eliminate the need for traditional drainage and detention requirements, saving space and money.
THICKNESS, SHAPES & SIZES:

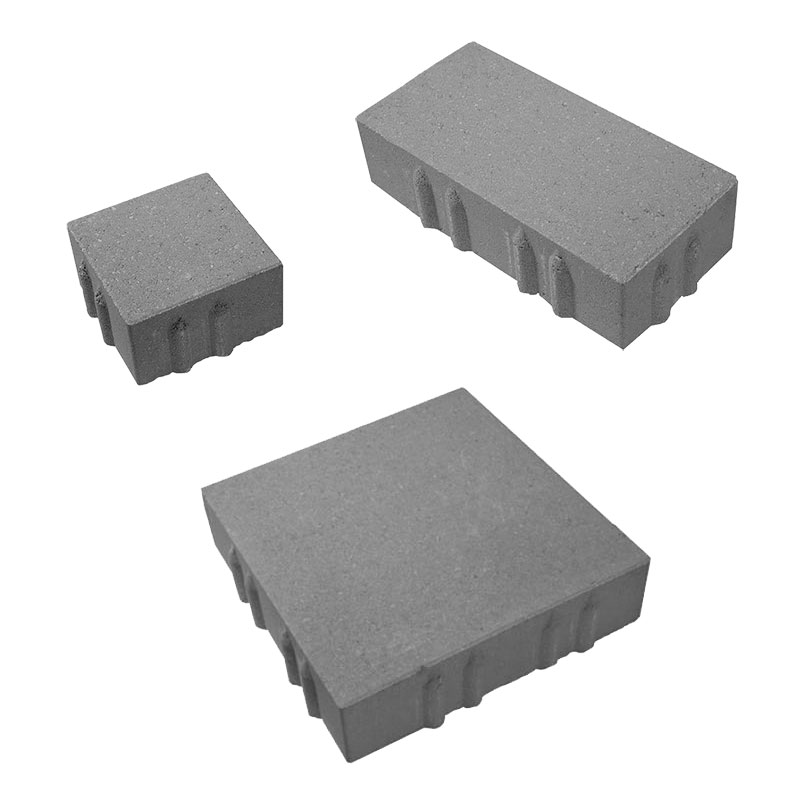

- 3-1/8" (80mm), 3-Piece*:4-1/2"x4-1/2" | 4-1/2""x9" | 9"x9"
⚠* special order - 1500 SF or more
PALLET INFORMATION:
Each Belgard Paver is made by various Belgard manufacturing plants across the country. Each manufacturing plant has their own specific capabilities and capacities, and the amount of square footage and weight by pallet can be different by plant. The below table contains the square foot and weight by pallet/cube, by each manufacturing plant. If you are ordering, this information is important for determining the right order quantity and correct shipping cost.
AQUALINE 3 - PIECE ASHLAR 3-1⁄8" (80MM) MANUFACTURING
pLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
Pallet92 92 92 92 92 Layers/
PalletTBA* TBA* TBA* TBA* TBA* Units/
PalletTBA* TBA* TBA* TBA* TBA* Weight/
Pallet3220
lbs3220
lbs3220
lbs3220
lbs3220
lbsAdditional
NotesSPECIAL ORDER** *Please contact us for further details **1500SF Minimum Order PAVER PATTERN:

AQUALINE ASHLAR
3-PIECE SET PATTERNINSTALLATION, MAINTENANCE & RESTORATION:




Jointing, Edging
& Poly SandStain Removers
& CleanersPaver Protector
& SealersAdhesives, Tools
& AccessoriesFREQUENTLY BOUGHT TOGETHER:
AQUALINE ASHLAR PAVERS FEATURES:
- Belgard’s Aqualine permeable pavement systems can eliminate stormwater runoff and improve water quality
- Interlocking blind spacer bars for increased structural performance and aesthetics
- Smooth surface with micro-chamfer to reduce vibration which can provide an ADA-compliant pavement
- True installed dimensions with variety of sizes for optimizing design
- Optimal joint openings for infiltration and maintenance
- Surface Infiltration Rate: > 500 inches per hour (varies based on joint infill gradation)
- Chamfer Width: 3 mm
- Spacer Bar Width: 10 mm
- Surface Open Area: 12%
OVERVIEW VIDEO:
- 3-1/8" (80mm), 3-Piece*:
