MODERN • LINEAR • SMOOTH • MODULAR • RICH-COLOR
Catalina Grana Interlocking Concrete Pavers provide crisp, clean lines and a smooth, linear surface that creates an eye-catching contemporary look ideal for commercial courtyards and walkways.
This modular interlocking paver system can meet ADA compliance standards when installed in accordance to Accessible Design requirements. It offers superb design flexibility and ease of installation, with a multitude of possible laying patterns.
Belgard Catalina Grana Pavers Application :

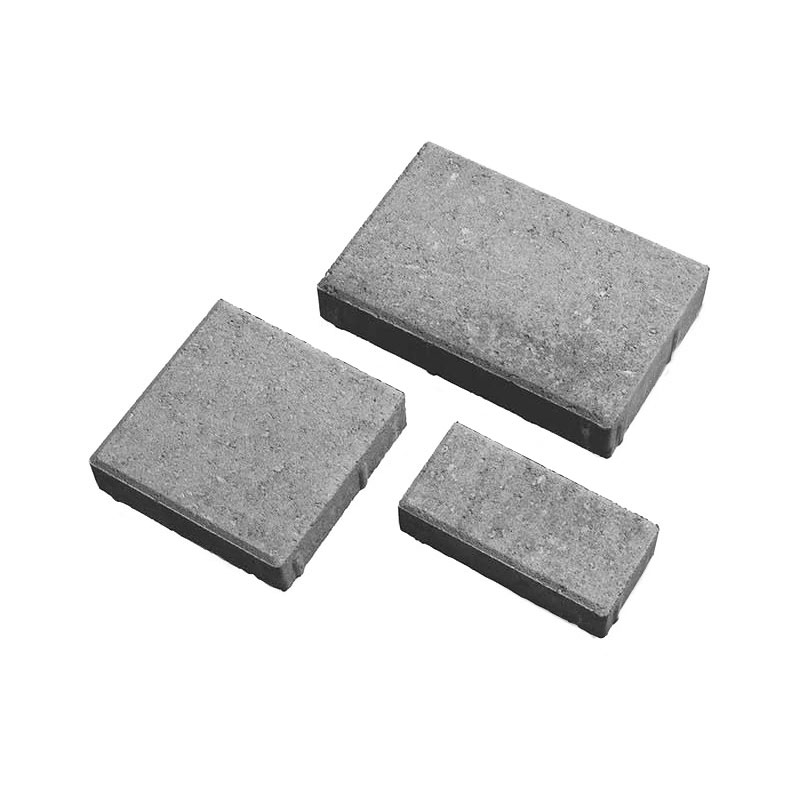

Belgard Catalina Grana Pavers Thickness, Shapes & Sizes :
- 1-3/16" (30mm)*, 3-Piece: 4"x8" | 8"x8" | 8"x12"
*30mm not recommended for vehicular use.
*Vehicular use only approved with use of DriBond™ - 2-3/8" (60mm), 3-Piece: 4"x8" | 8"x8" | 8"x12"
- 3-1/8" (80mm)**, 3-Piece: 4"x8" | 8"x8" | 8"x12"
**80mm is available - please inquire.
Frequently Bought Together :
- 1-3/16" (30mm)*, 3-Piece: 4"x8" | 8"x8" | 8"x12"
Brand Belgard (Coastal) Texture Smooth Paver Specifications PALLET INFORMATION / ESTIMATING CHART :
Each Belgard Paver is made by various Belgard manufacturing plants across the country. Each manufacturing plant has their own specific capabilities and capacities, and the amount of square footage and weight by pallet can be different by plant. The below table contains the square foot and weight by pallet/cube, by each manufacturing plant. If you are ordering, this information is important for determining the right order quantity and correct shipping cost.
CATALINA GRANA 3-PIECE 1-3⁄16" (30MM) MANUFACTURING
PLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
Pallet103 Layers/
Pallet10 Units/
Pallet240 Weight/
Pallet1490 lbs Additional Notes CATALINA GRANA 3-PIECE 2-3⁄8" (60MM) MANUFACTURING
PLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
Pallet103 103 103 103 103 Layers/
Pallet10 10 10 10 10 Units/
Pallet240 240 240 240 240 Weight/
Pallet2778
lbs*2778
lbs*2778
lbs*2778
lbs*2778
lbs*Additional Notes *This estimated value may have changed. Please contact us for further update details NOTE: Please request quote for 80MM (3-1⁄8") thicknesses.
APPLICATION MATRIX :
CATALINA GRANA 3-PIECE SET DIMENSION THICKNESS TRAFFIC LOAD & COMPLIANCE 4"x8",
8"x8",
8"x12"1-3⁄16"
(30mm)
2-3⁄8"
(60mm)
3-1⁄8"
(80mm)
Paver Pattern
CATALINA GRANA PAVER - PATTERN A
CATALINA GRANA PAVER - PATTERN B
CATALINA GRANA PAVER - PATTERN C
CATALINA GRANA PAVER - PATTERN D
CATALINA GRANA PAVER - PATTERN E
