TIMELESS • EUROPEAN • CLASSIC STYLE • TEXTURED • DISTRESSED LOOK
TIMELESS • TEXTURED • DISTRESSED LOOK

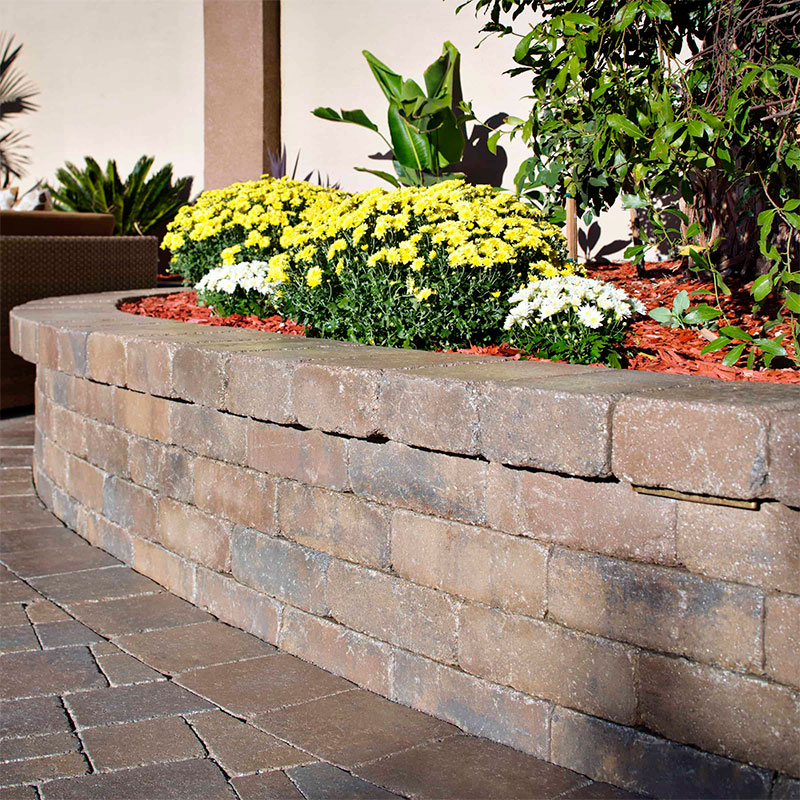

The Diamond® 2.0 FSW is remarkably versatile creating curved and straight seat walls with a labor saving installation design. Combined with the coordinating retaining wall system and columns or as a stand alone element, this wall creates inviting outdoor spaces. With a rough-hewn face and multiple sizes, Diamond 9D 2.0 FSW offers the look of a charming hand-stacked wall and can be used to create planters, raised patios, columns and more.
Thickness, Shapes & Sizes :
- 6" (152.4mm), 3-Piece:5-7/8"x4-5/8" | 11-7/8"x4-5/8" | 17-3/4"x4-5/8"
Application :
Coordinating Product :
Installation, Maintenance & Restoration :
Frequently Bought Together :
Inspiration Video :
- 6" (152.4mm), 3-Piece:
Brand Belgard (Coastal) Texture Textured Specifications DIAMOND 9D 2.0 FSW WALL BLOCKS FEATURES & BENEFIT :
- Create curved freestanding walls with virtually no cutting.
- Column units can create 24-inch, 21-inch or 18-inch column.
- Multiple cap options available to create unique looks.
- Base block designed for faster installation.
- Three lengths of wall block provides a more random look.
DIAMOND 9D 2.0 FSW SYSTEM PERFORMANCE :
- Maximum wall height: 3 feet
- Maximum straight wall length between design elements: 10 feet
- Minimum radius: 3 feet, 9 inches
- Maximum column height is up to 6 feet including buried course and excluding cap
*Wall height includes buried course, but excludes cap. Maximum column height is up to 6 feet including buried course and excluding cap.
**Product dimensions are height by face length by depth. Actual dimensions may vary from these approximate values due to variations in manufacturing processes.
PALLET INFORMATION / ESTIMATING CHART :
Each Belgard Wall is made by various Belgard manufacturing plants across the country. Each manufacturing plant has their own specific capabilities and capacities, and the amount of square footage and weight by pallet can be different by plant. The below table contains the square foot and weight by pallet/cube, by each manufacturing plant. If you are ordering, this information is important for determining the right order quantity and correct shipping cost.
Diamond 9D 2.0 FSW 3-piece 6" (152.4MM) MANUFACTURING
pLANTSWPB ORL HC LA ZH JAX FP DFS SQFT/
PALLET47.36* 47.36* Layers/
Pallet4* 4* Units/
Pallet32* 32* SqFt/
UNIT1.48* 1.48* Weight/
Pallet1665
lbs*1665
lbs*Additional
Notes*This estimated value may have changed. Please contact us for further update details
