TIME-WORN • ORGANIC • CLASSIC STYLE • TEXTURED • DISTRESSED LOOK
TIME-WORN • TEXTURED • DISTRESSED LOOK

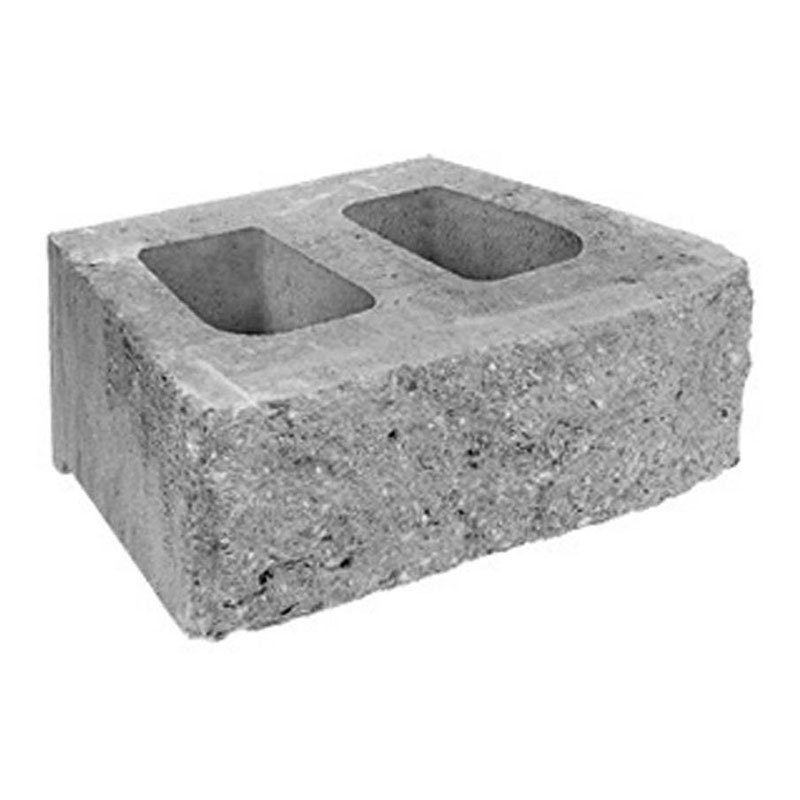

The versatile and easy-to-use design of Diamond® 9D Retaining Wall Systems has made them the preferred choice of contractors for decades. The rough-hewn distressed look and easy installation system have made Diamond 9D a favorite for residential wall projects. The system is topped with a coordinating cap unit.
Diamond 9D Retaining Wall Concrete Blocks have the advantages of an easy-to-handle lighter weight and beautifully distressed appearance well-suited for curved or straight walls, steps, planters, and raised patios.
Thickness, Shapes & Sizes :
- 6" (152.4mm), Rectangular:17.75"x9"
Application :
Coordinating Product :
Installation, Maintenance & Restoration :
Frequently Bought Together :
Inspiration Video :
- 6" (152.4mm), Rectangular:
Brand Belgard (Coastal) Texture Textured Specifications DIAMOND 9D WALL BLOCKS FEATURES & BENEFIT :
- Gravity walls can be built up to 3 feet high, including buried course, excluding the cap*.
- Taller walls can be built using geosynthetic reinforcement or the Anchorplex™ retaining wall system when designed by a qualified engineer.
- Minimum outside radius, measured on the top course to the front of the units: 3 feet.
- Minimum inside radius, measured on the base course to the front of the units: 6 feet.
*This height assumes cores are filled with drainage aggregate, level backfill and clean, compacted sand or gravel and no surcharge.
PALLET INFORMATION / ESTIMATING CHART :
Each Belgard Wall is made by various Belgard manufacturing plants across the country. Each manufacturing plant has their own specific capabilities and capacities, and the amount of square footage and weight by pallet can be different by plant. The below table contains the square foot and weight by pallet/cube, by each manufacturing plant. If you are ordering, this information is important for determining the right order quantity and correct shipping cost.
DIAMOND 9D WALL BLOCK 6" (152.4MM) MANUFACTURING
PLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
PalletLayers/
PalletUnits/
Pallet48 48 SqFt/
UNIT0.67 0.67 Weight/
Pallet2967
lbs*2967
lbs*Additional
Notes*This estimated value may have changed. Please contact us for further update details
