BEAUTY • COMFORT • FUNCTION
The light warmth coming from a Fireplace is perfect for keeping you and your loved ones comfortable while spending the night in your yard or patio during cold evenings. Bring that sense of comfort outside with an Outdoor Fireplace created with Tremron Stonegate Wall Blocks. Complete your outdoor fireplace space by adding in your choice of appliances and burner kits. The fireplace combine the elegant, weathered beauty of popular Stonegate retaining wall system in pre-sorted pallets that make installation easy, fast and efficient.
The Stonegate No-Cut Design is the affordable, high-quality backyard upgrade homeowners want. The Stonegate No-Cut designs accommodate a variety of outdoor living elements without the challenges of estimating and design. The projects require no cutting and can be constructed by two novice installers using downloaded illustrated step-by-step instructions.
Available in regionally relevant colors, the one- and two-sided hearth fireplaces come in three-pallet designs that can be installed in about an hour. Grills, refrigerators, counter top, propane tanks other accessories are sold separately (Special Order).
Create the perfect gathering space for family and friends with a Tremron fireplace!
Design Option :

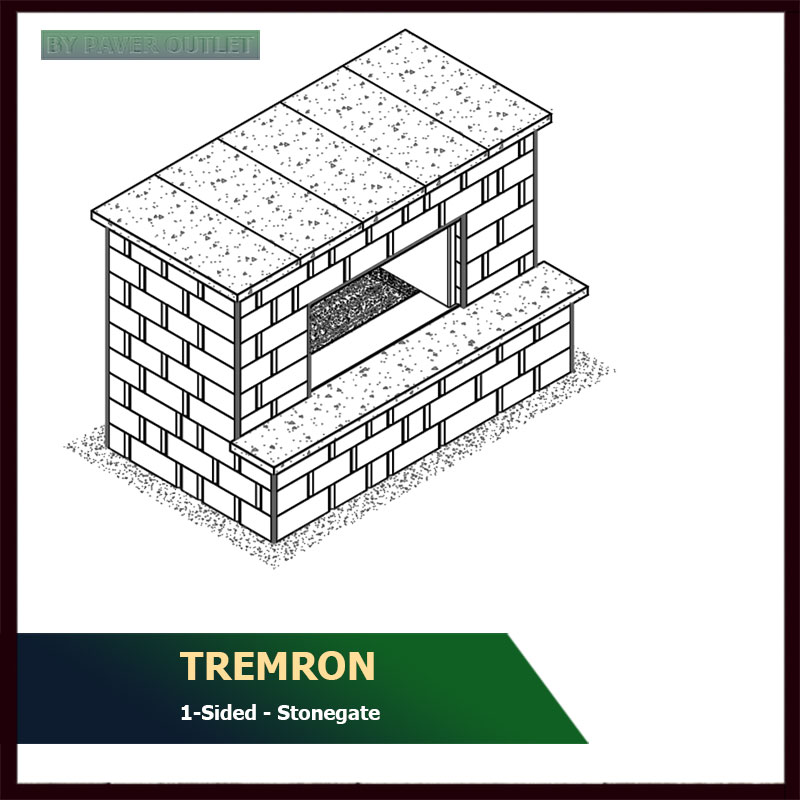

- 1-Sided Design*⚠* Fireplace Insert, Access Door, Burner Kits, Counter Top & Filler material are Sold Separately (Special Order).

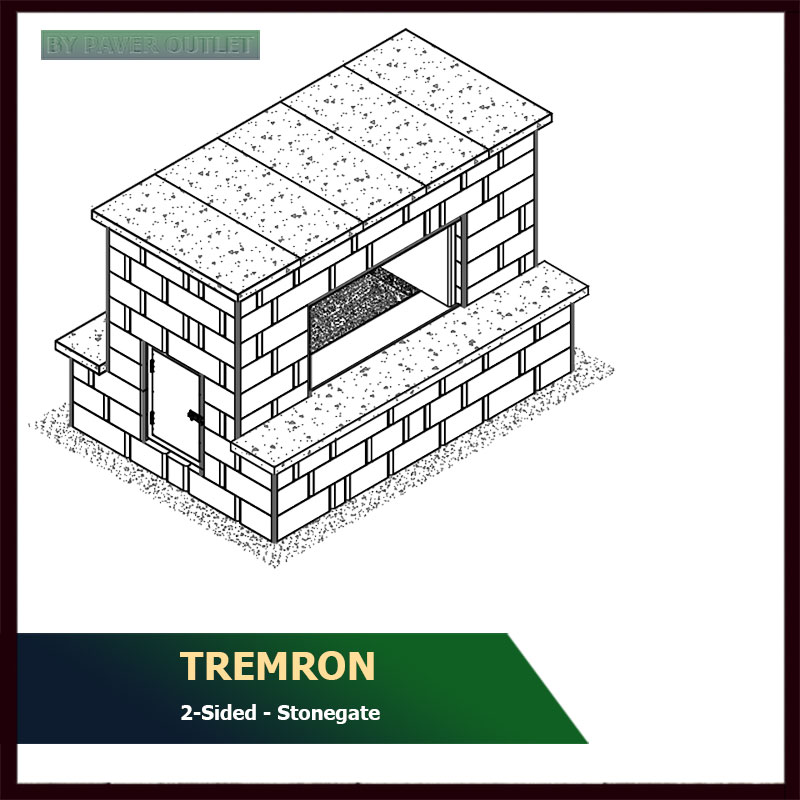

- 2-Sided Design*⚠* Fireplace Insert, Access Door, Burner Kits, Counter Top & Filler material are Sold Separately (Special Order).
Overall Dimension* :
- 54" Tall (without 2" Thick of Fireplace Concrete Top)
- 82"x46" for 1-Sided Fireplace (including 1x 10" Hearth Extension)
- 82"x56" for 2-Sided Fireplace (including 2x 10" Hearth Extension)
Application :
Standard Kits Material :
- 3-Piece Set Stonegate Wall Blocks Units:Large Wall Block units [16"(F)/14"(B) x10"]
Medium Wall Block units [12"(F)/10"(B) x10"]
Small Wall Block units [6"(F)/4"(B) x10"]
* Please refer to Details tab for more information about Stonegate Wall Block Unit quantities for each Design.
Additional Accessories (Sold Separately) :
- Fireplace InsertBlack Carbon or Stainless Steel
- Access Door with 2 Vents Model FPID (Black Carbon Steel) or D/S (Stainless Steel)
- Fireplace Burner Kits
- Fireplace Hearth
- Fireplace Concrete Top
- Exterior Construction Grade Adhesive
- Crushed Stone / Reinforced Concrete Leveling Pad
Note: Please refer to Details tab for more information about material list of each design
Installation Video :
Brand Tremron Specifications DESIGN OPTION MATERIAL LIST
- 57 Large Wall Block units
[16"(F)/14"(B) x10"] - 57 Medium Wall Block units
[12"(F)/10"(B) x10"] - 56 Small Wall Block units
[6"(F)/4"(B) x10"] - Exterior Construction Grade Adhesive(1) (not included)
- Fireplace Insert (not included)
- Access Door w/ 2 Vents(2) (not included)
- 2 Fireplace Hearth (3) (not included)
- Fireplace Concrete Top(3) (not included)
- Fireplace Burner Kits(4) (not included)
- 6" (Min.) Crushed Stone or Reinforced Concrete Leveling Pad (not included)
DESIGN OPTION MATERIAL LIST
- 56 Large Wall Block units
[16"(F)/14"(B) x10"] - 56 Medium Wall Block units
[12"(F)/10"(B) x10"] - 56 Small Wall Block units
[6"(F)/4"(B) x10"] - Exterior Construction Grade Adhesive(1) (not included)
- Fireplace Insert (not included)
- Access Door w/ 2 Vents(2) (not included)
- 2 Fireplace Hearth (3) (not included)
- Fireplace Concrete Top(3) (not included)
- Fireplace Burner Kits(4) (not included)
- 6" (Min.) Crushed Stone or Reinforced Concrete Leveling Pad (not included)
Note :
- Please refer to attach file on Attachment tab for more detailed Installation Instructions.
- All Stonegate Wall Block units that used, have 6" of thickness.
(1) We recommends the use of exterior grade construction adhesive to maximize stability of your structure.
(2) The Access Door provides an opening on the side to the inside of the block structure for gas controls. Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch. Each access door option includes (2x) access door vents. These optional components must be installed at the same time that the fireplace is originally erected.
- Model FPI-D: Access Door for use with the FPI-4 steel fireplace insert, 10 ga. steel plate, dip painted with high heat non-toxic black enamel. Weight: 32 lbs.
- Model FPI-D/S: Stainless Steel Access Door for use with the FPI-4/S fireplace insert, 11 ga. stainless steel, not painted. Weight: 29 lbs.
(3) Fireplace Hearth(s) is to be made from the same material as the Fireplace Concrete Top, (1"± thick). Install and align the hearth(s) for the fireplace on top of the 3rd course block units hearth extension(s), Poured concrete or natural stone are great options for Fireplace Hearth. Unless otherwise directed, secure the hearth(s) and concrete top pieces with approved adhesive or bonding agent.
(4) Install Fireplace Burner Insert on Bottom Plate as required. It is recommended to use a stainless steel outdoor fireplace H-burner insert not to exceed 32"L x 8"W with suitable hose and regulator accessories. Use 1 cubic foot ± of suitable fire glass or fire rock material to fill the recessed section of the fireplace bottom plate. Install as per manufacturers assembly instructions.
RECOMMENDED ACCESS DOOR OPTIONS (SPECIAL ORDER) IMAGE MANUFACTURER MODEL DESCRIPTION RJ Thomas RJT FPI-D Access door w/ 2 vents, black carbon steel
Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch.
Includes (2) 7” x 7” (nom.) vents per door kit.
Access Door for use with the FPI-3 or FPI-4 steel fireplace insert, 10 ga. steel plate, dip painted with high heat non-toxic black enamel. Weight: 32 lbs.
RJ Thomas RJT FPI-D/S Access door w/ 2 vents, stainless steel
Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch.
Includes (2) 7” x 7” (nom.) vents per door kit.
Stainless Steel Access Door for use with the FPI-3/S or FPI-4/S stainless fireplace insert, 11 ga. stainless steel, not painted. Weight: 29 lbs.
RECOMMENDED FIREPLACE INSERT OPTIONS (SPECIAL ORDER) IMAGE MANUFACTURER MODEL DESCRIPTION RJ Thomas RJT FPI-4 - 1-sided fireplace insert, black carbon steel
- Model FPI-4 includes a single-sided steel firebox (no chimney is required). The firebox is open on one side for viewing.
- Dimensions (nom.): 42 inches wide across front opening x 23-3/4 inches deep x 26-3/4 inches tall inside.
- Model FPI-4: All steel components are dip painted with high heat non-toxic black enamel. Weight Model FPI-4: 229 lbs. each complete unit.
RJ Thomas RJT FPI-3 - 2-sided fireplace insert, black carbon steel.
- Model FPI-3 includes a double-sided steel firebox (no chimney is required). The firebox is open on both sides so you can see the gas flame from both sides.
- Dimensions (nom.): 42 inches wide across each opening x 32 inches deep x 27 inches tall inside.
- Standard Model FPI-3: All steel components are dip painted with high heat non-toxic black enamel. Weight Model FPI-3: 238 lbs. each complete unit.
RJ Thomas RJT FPI-4/S - 1-sided fireplace insert, stainless steel.
- Model FPI-4 includes a single-sided steel firebox (no chimney is required). The firebox is open on one side for viewing.
- Dimensions (nom.): 42 inches wide across front opening x 23-3/4 inches deep x 26-3/4 inches tall inside.
- Model FPI-4/S: All steel components are fabricated from 7 ga. and 11 ga. stainless steel (not painted). Weight Model FPI-4/S: 229 lbs. each complete unit.
RJ Thomas RJT FPI-3/S - 2-sided fireplace insert, stainless steel.
- Model FPI-3 includes a double-sided steel firebox (no chimney is required). The firebox is open on both sides so you can see the gas flame from both sides.
- Dimensions (nom.): 42 inches wide across each opening x 32 inches deep x 27 inches tall inside.
- Model FPI-3/S: All steel components are fabricated from 7 ga. and 11 ga. stainless steel (not painted). Weight Model FPI-3/S: 238 lbs. each complete unit.
RECOMMENDED FIREPLACE BURNER KITS OPTIONS (SPECIAL ORDER) MANUFACTURER MODEL DESCRIPTION HPC Fire Inspired FFPK/HBS30PS/ST-KIT Stainless steel H-burner kit
for 20 lb LP tank.HPC Fire Inspired FPK/HBS30PS/LP-KIT Stainless steel H-burner kit
for hard pipe LP with flex-line.HPC Fire Inspired FPK/HBS30PS/NG-KIT Stainless steel H-burner kit
for hard pipe NG with flex-line.- 57 Large Wall Block units
Paver Pattern COURSE BY COURSE

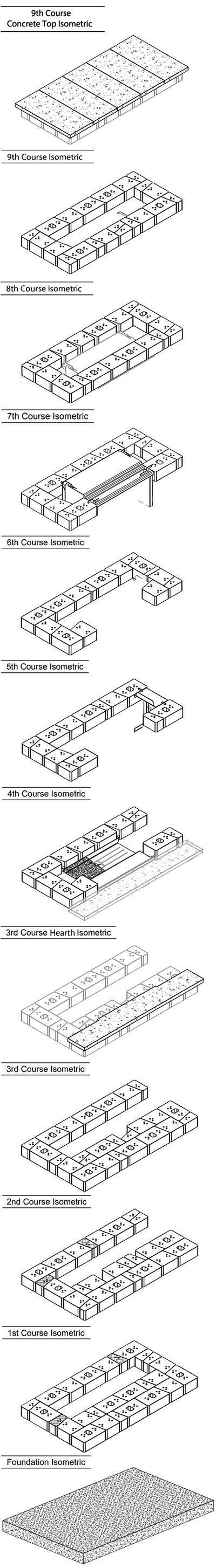

1-SIDED FIREPLACE PATTERNCOURSE BY COURSE

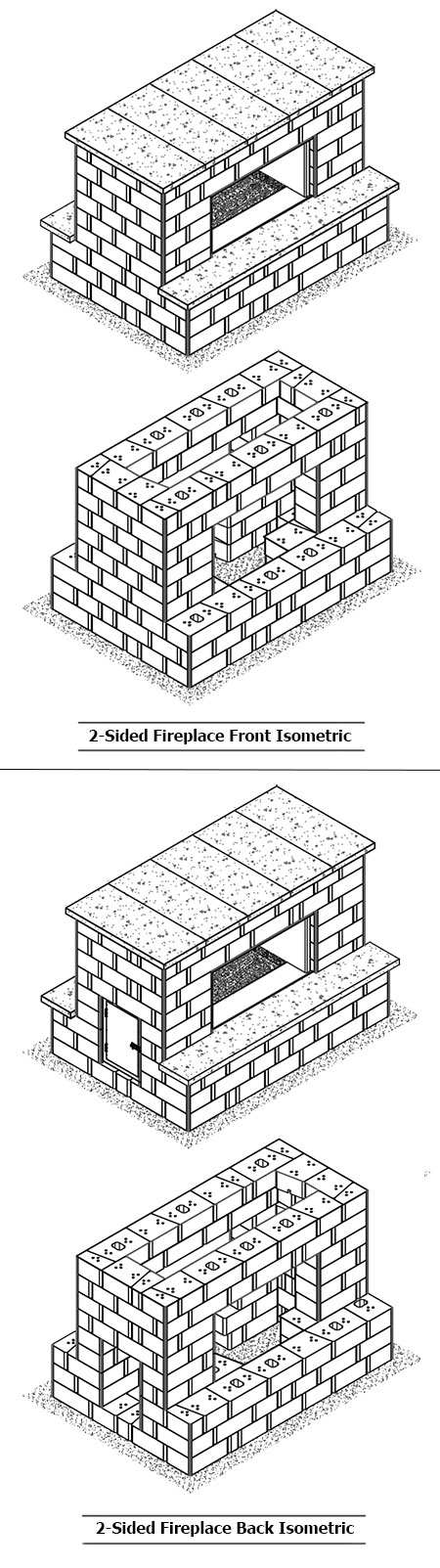

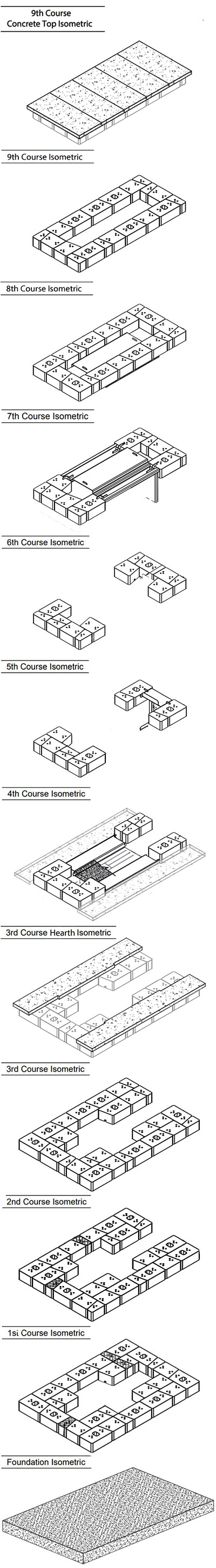

2-SIDED FIREPLACE PATTERN
