Paver Specifications |

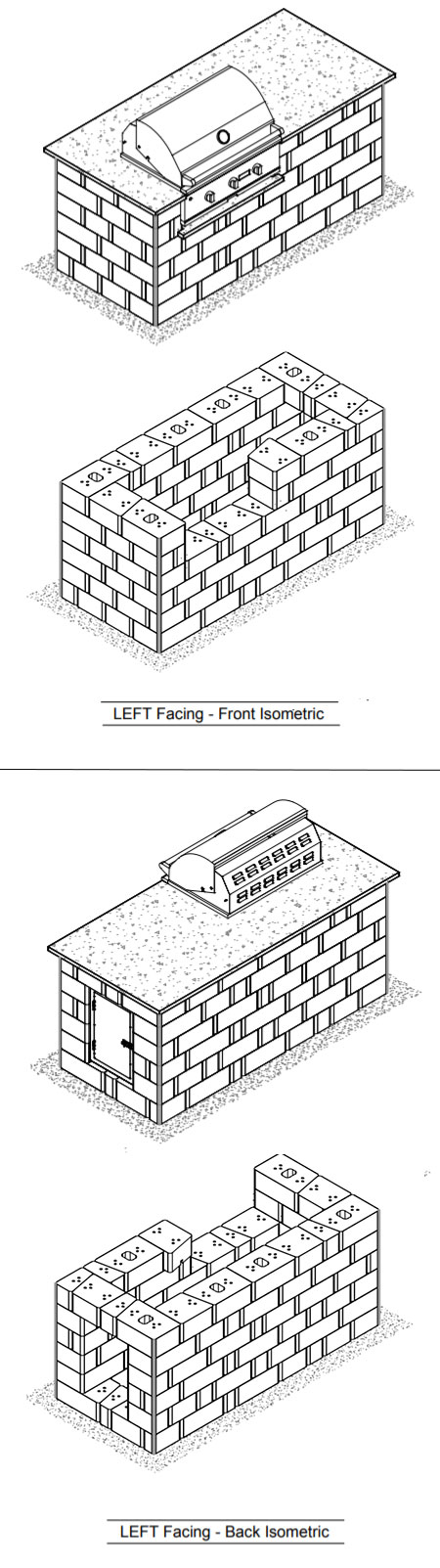

DESIGN OPTION |
MATERIAL LIST |

|
- 35 Large Wall Block units
[16"(F)/14"(B) x10"]
- 32 Medium Wall Block units
[12"(F)/10"(B) x10"]
- 35 Small Wall Block units
[6"(F)/4"(B) x10"]
- Exterior Construction Grade Adhesive(1) (not included)
- Grill Head Insert (not included)
- Access Door w/ 2 Vents(2) (not included)
- Grill Filler Piece(3) (not included)
- Counter Top(3) (not included)
- 6" (Min.) Crushed Stone or Reinforced Concrete Leveling Pad (not included)
|

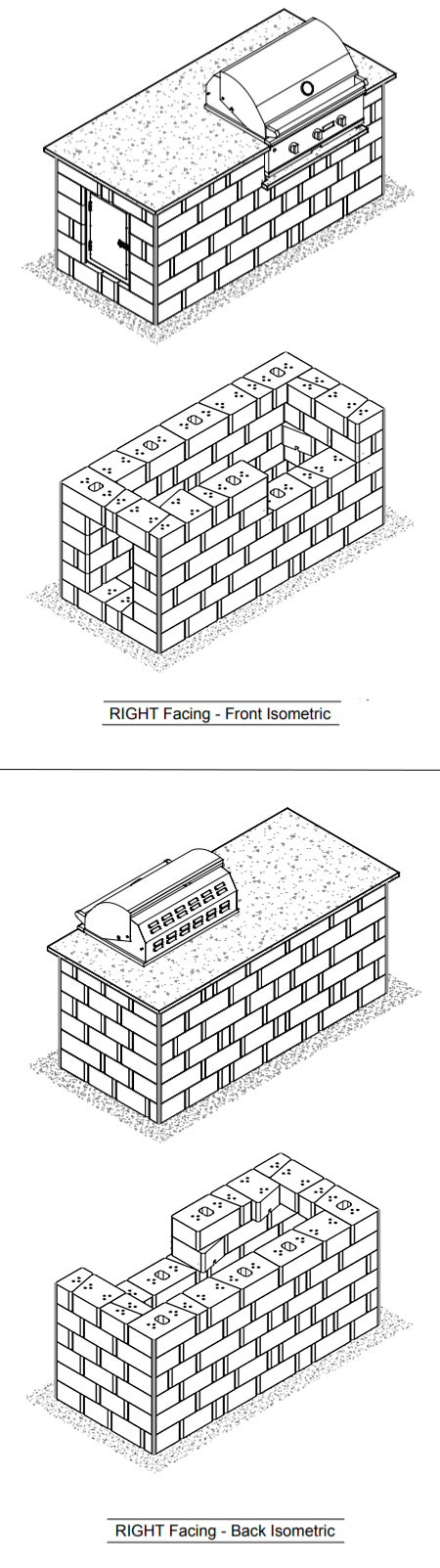

DESIGN OPTION |
MATERIAL LIST |

|
- 35 Large Wall Block units
[16"(F)/14"(B) x10"]
- 32 Medium Wall Block units
[12"(F)/10"(B) x10"]
- 35 Small Wall Block units
[6"(F)/4"(B) x10"]
- Exterior Construction Grade Adhesive(1) (not included)
- Grill Head Insert (not included)
- Access Door w/ 2 Vents(2) (not included)
- Grill Filler Piece(3) (not included)
- Counter Top(3) (not included)
- 6" (Min.) Crushed Stone or Reinforced Concrete Leveling Pad (not included)
|
Note :
- Please refer to attach file on Attachment tab for more detailed Installation Instructions.

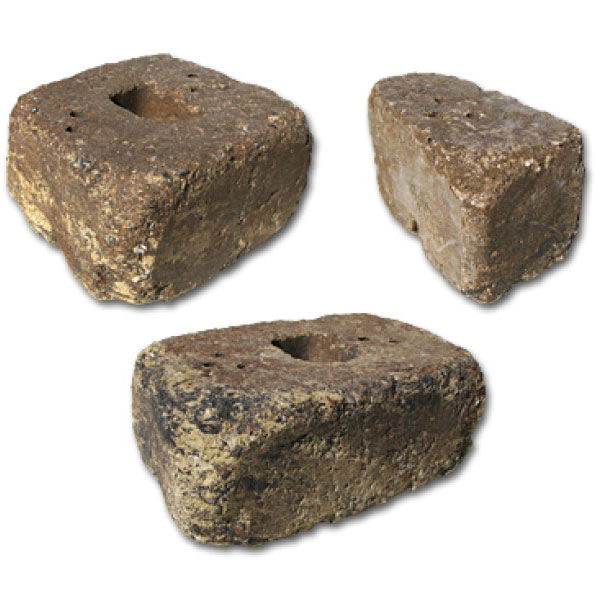

- All Stonegate Wall Block units that used, have 6" of thickness.
(1) We recommends the use of exterior grade construction adhesive to maximize stability of your structure. (2) The Access Door provides an opening on the side to the inside of the block structure for gas controls. Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch. Each access door option includes (2x) access door vents. These optional components must be installed at the same time that the fireplace is originally erected. - Model FPI-D: Access Door for use with the FPI-4 steel fireplace insert, 10 ga. steel plate, dip painted with high heat non-toxic black enamel. Weight: 32 lbs. - Model FPI-D/S: Stainless Steel Access Door for use with the FPI-4/S fireplace insert, 11 ga. stainless steel, not painted. Weight: 29 lbs. (3) Filler piece is to be made from the same material as the Counter Top, (1"± thick). Poured concrete or natural stone are great options for Grill filler piece and Counter Top. Install and secure Filler piece and Counter Top with approved adhesive or bonding agent.
|
RECOMMENDED ACCESS DOOR OPTIONS (SPECIAL ORDER) |
IMAGE |
MANUFACTURER |
MODEL |
DESCRIPTION |
 |
RJ Thomas |
RJT FPI-D |
Access door w/ 2 vents, black carbon steel
Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch.
Includes (2) 7” x 7” (nom.) vents per door kit.
Access Door for use with the FPI-3 or FPI-4 steel fireplace insert, 10 ga. steel plate, dip painted with high heat non-toxic black enamel. Weight: 32 lbs.
|
 |
RJ Thomas |
RJT FPI-D/S |
Access door w/ 2 vents, stainless steel
Door opening (nom.): 12-3/4 in. wide x 20-1/4 in. tall. Door includes a slide latch.
Includes (2) 7” x 7” (nom.) vents per door kit.
Stainless Steel Access Door for use with the FPI-3/S or FPI-4/S stainless fireplace insert, 11 ga. stainless steel, not painted. Weight: 29 lbs.
|
RECOMMENDED GRILL HEADS OPTIONS (SPECIAL ORDER) |
IMAGE |
MANUFACTURER |
MODEL |
DESCRIPTION |
 |
Coyote |
C2C34 |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 31 in.;
- Fascia width 34 in.
FEATURING:
- Three cast high performance Coyote Infinity Burners™
- 780 square inches of cooking area
- Up to 60,000 BTU of output
- Complete 304 stainless steel construction
- Interior grill lighting
- Optional wind guard
|
 |
Bull |
Angus |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 31 in.;
- Fascia width 30½ in.
FEATURING:
- 75,000 BTUs
- 304, 14 Gauge Stainless Steel Construction
- Four cast stainless burners 15,000 BTUs each
- Infrared back burner 15,000 BTUs
- Single Piece Dual Lined Hood
- Piezo igniters/Zinc Knobs
- Solid Stainless Steel Grates
- Heavy Duty Thermometer
- Warming Rack 210 Sq. In.
- SS Rotisserie Motor
- Twin Lighting System
- Cooking Surface 810 Sq. In.
- CSA Approved
|
 |
Bull |
Lonestar |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 31 in.;
- Fascia width 30½ in.
FEATURING:
- 60,000 BTUs
- 304, 14 gauge Stainless Steel Construction
- 4 Welded Stainless Steel Bar Burners 15,000 BTUs each
- Single Piece Dual Lined Hood
- Piezo igniters /Zinc Knobs
- Solid Stainless Steel Grates
- Heavy Duty Thermometer
- Warming Rack 210 Sq. In.
- Twin Lighting System
- Cooking Surface 810 Sq. In.
- CSA Approved
|
 |
Bull |
Outlaw |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 31 in.;
- Fascia width 30½ in.
FEATURING:
- 60,000 BTUs
- 304, 14 Gauge Stainless Steel Construction
- 4 Porcelain Coated Burners 15,000 BTUs each
- Single Piece Dual Lined Hood
- Piezo igniters/Zinc Knobs
- Solid Stainless Steel Grates
- Heavy Duty Thermometer
- Warming Rack 210 Sq. In.
- Cooking Surface 810 Sq. In.
- CSA Approved
|
 |
Blaze |
BLZ-4 |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 30-5/8 in.;
- Fascia width 32½ in.
FEATURING:
- 4 commercial quality 304 cast stainless steel burners
- 14,000 BTUs of cooking power per burner, for a total cooking surface of 56,000 BTUs
- 10,000 BTU infrared rear rotisserie burner
- Total grill BTUs equal 66,000
- Heavy 8mm stainless steel rounded cooking rods maximize durability
- 740 square inches of total cooking space
- Push and turn flame-thrower primary ignition system delivers a fast start every time
- Flash tube ignition and crossovers provide an alternate ignition option
- Removable warming rack
- Heat zone separators divide the cooking surface into individual temperature zones
- Flame stabilizing grids minimize flare-ups while adding a grilled flavor
- Full-width drip tray for quick clean up
- Double-lined grill hood protects outer layer from heat discoloration and maintains more heat
|
 |
AOG |
30NBL/T |
OVERALL:
- Grill head;
- 32 in. block opening;
- Counter cutout width 30-5/8 in.;
- Fascia width 31 in.
FEATURING:
- Diamond Sear stainless steel cooking grids
- Warming rack
- Distinctively designed analog thermometer with polished bezel
- Solid brass valves for precise temperature control and long life
- Heavy duty 300 series stainless steel construction
- Halogen lights
- 120 Volt power source required (L Series only)
- Advanced high-quality 300 series stainless steel burners
- Stainless steel vaporizer panels for even heat distribution
- Backburner and rotisserie kit (not available on -OOSP grills)
- Easy to handle 4-prong adjustable meat holder for rotisserie
- Electronic push button ignition (L Series) or
- “Rapid Light” piezo ignition system (T Series)
- Easy to use drip collection system
|
