Diamond® Pro Stone Cut - 8" Textured Retaining Wall Blocks - Belgard
|
REQUIRED SQ.FT. AMOUNT
|
- DESCRIPTION
- DETAILS
- PATTERNS
- ATTACHMENTS
- REVIEWS
- Q&A
- RELATED PRODUCTS
TIME-WORN • ORGANIC • TUMBLED • CLASSIC • FACETED LOOK • EARTHEN TONES
TUMBLED • FACETED LOOK • EARTHEN TONES

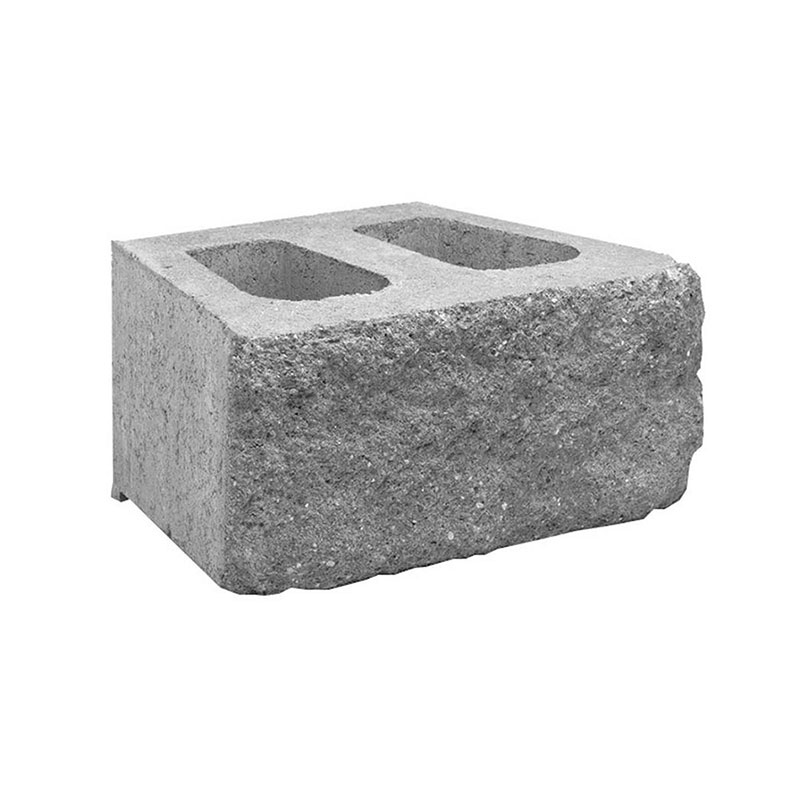

Renowned for its rough-hewn face and earthen tones, the Diamond Pro Stone Cut Retaining Wall System imparts a rich, faceted appearance. It is the ideal choice for large scale wall projects.
The Diamond Pro Stone Cut retaining wall system combines the durability of the Diamond Pro system with a rich, rough-hewn appearance. The performance characteristics make it the proven solution for tall walls, Department of Transportation, commercial developments, water applications, and other critical wall needs.
- Rear-lip block makes installation fast and accurate
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high, including buried course, but excluding the cap*
*This height assumes cores are filled with drainage aggregate, level backfill and clean, compacted sand or gravel and no surcharge - Taller walls can be built using geosynthetic reinforcement or the Anchorplex™ retaining wall system when designed by a qualified engineer
- ICC evaluated
Thickness, Shapes & Sizes :
- 8" (203.2mm), 2-Piece* (Medium & Small):
7"x12" | 11"x12"
⚠* special order - 1500 SF or more - 8" (203.2mm), Rectangular** (Large):18"x12"
⚠** special order - 1500 SF or more
Application :
Coordinating Product :
Installation, Maintenance & Restoration :
Frequently Bought Together :
Recommended Alternatives :
Inspiration Video :
Brand Belgard (Coastal) Texture Textured Specifications PALLET INFORMATION / ESTIMATING CHART :
Each Belgard Wall is made by various Belgard manufacturing plants across the country. Each manufacturing plant has their own specific capabilities and capacities, and the amount of square footage and weight by pallet can be different by plant. The below table contains the square foot and weight by pallet/cube, by each manufacturing plant. If you are ordering, this information is important for determining the right order quantity and correct shipping cost.
DIAMOND PRO STONE CUT LARGE 8" (203.2MM) MANUFACTURING
PLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
PalletLayers/
PalletUnits/
Pallet48 48 SqFt/
UNIT1 1 Weight/
Pallet3456
lbs3456
lbsAdditional
NotesSPECIAL ORDER** **1500SF Minimum Order DIAMOND PRO STONE CUT 2-PIECE 8" (203.2MM) MANUFACTURING
pLANTSWPB ORL HC LA ZH JAX FP DFS SqFt/
PalletLayers/
PalletUnits/
Pallet48
(Each)48
(Each)SqFt/
UNIT0.39 (7"),
0.61 (11")*0.39 (7"),
0.61 (11")*Weight/
Pallet3456
lbs3456
lbsAdditional
NotesSPECIAL ORDER** *This estimated value may have changed. Please contact us for further update details **1500SF Minimum Order
